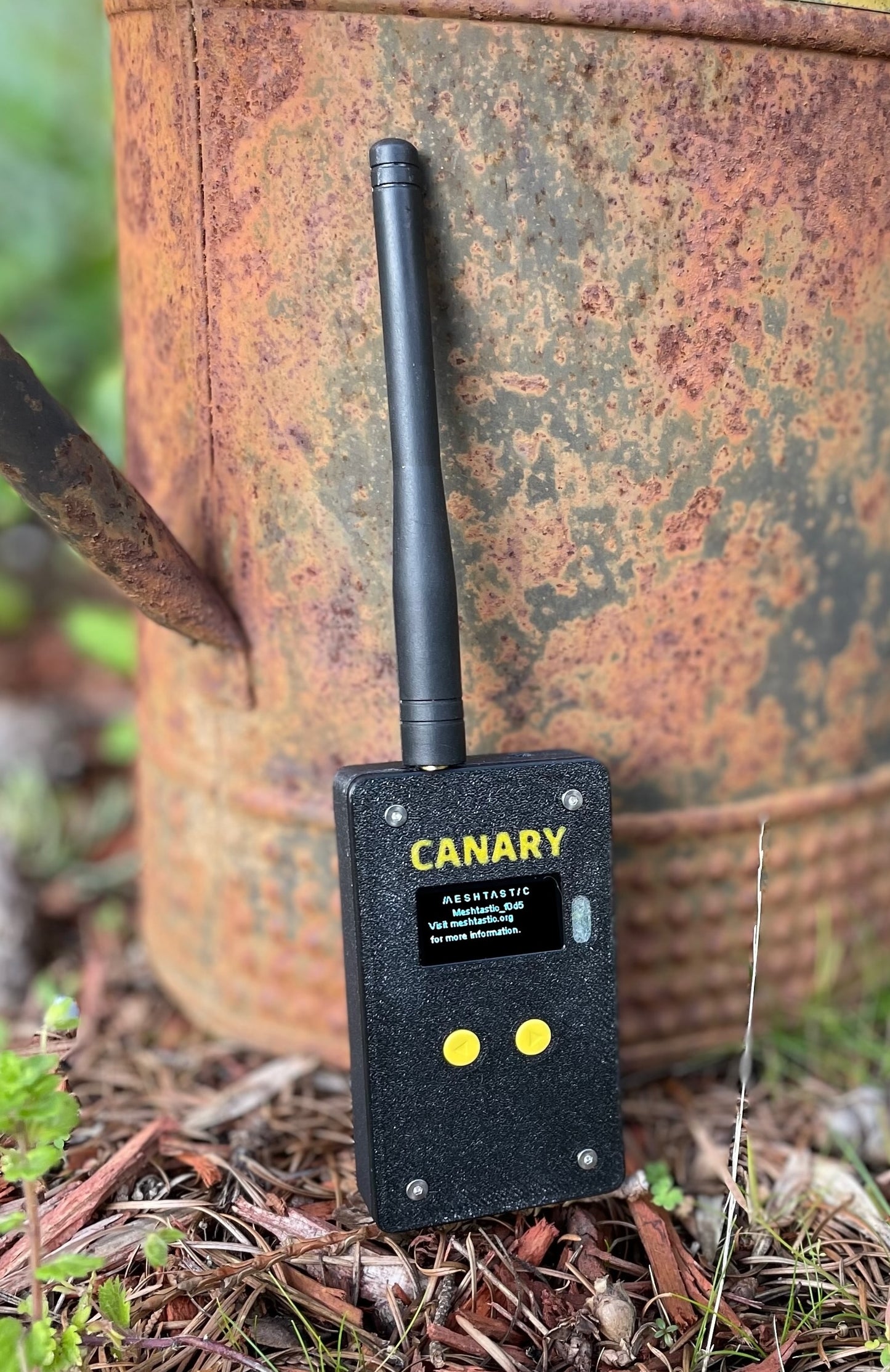

CanaryOne

CanaryOne ships flashed with Meshtastic firmware, approximately 70% battery, and antenna.  CanaryOne is a tactical, off grid networking solution that works with little configuration.

Features

• Works "out of the box" using Meshtastic's secure AES256 encrypted protocol
• Housed in ruggedized case
• USB-C connection for charging battery or connecting to device
• Bluetooth for connecting to device
• GPS onboard when phone location services not enabled, or for nodes not paired to end user device
• Can be flashed with newer versions of Meshtastic Firmware as they are released
• Antenna can be swapped or upgraded for use with different frequencies with any SMA connectable antenna
• Designed and assembled in the United States
• All active components sourced from NATO Countries

Quick Start

1.  Download Meshtastic App from Google Play Store or Apple Store

2.  (Optional) Download Official Meshtastic ATAK Plugin

3. Power on Radio by pressing both buttons simultaneously

4. Open Meshtastic App and Pair Radio - recommend starting with Channel configuration "Long Fast" and testing other channels in your region for maximum range or bandwidth

5. Configure Channel and share QR Code with other Users

Frequently Asked Questions

Will CanaryOne work with other Meshtastic Radios?  Yes.  CanaryOne will work with any Meshtastic Radio configured to use the same channel.

How long will my battery last?  CanaryOne was built with the goal of lasting 24-72 hours on a single charge.  However, battery life depends heavily on configuration, GPS power consumption (movement), and transmission and retransmission rate.

How long will it take me to get my radio?  CanaryOne ships the following business day.

I'm a Government purchaser, can I use a Government Purchase Code?  Yes.  CAGE:

9NT41, UEI:

P3KADHUA1FU2  Create a draft order and email support to receive a Section 889 Representation.

Technical Specifications

*TX/RX range is what the SX1262 is capable of.  Meshtastic channels are preconfigured for frequency usage in different regions.  Performance on frequency ranges depend greatly on antenna used. The default antenna option, 9000046-XLPDNB is designed for 868/915 ISM bands.  915MHz corresponds to Mesthastic Region "US".  868 MHz corresponds to Mesthastic Region "EU_868".
